Attach Remote Application

Start

Download debug-tools-boot.jar

url

https://download.debug-tools.cc/debug-tools-boot.jar

Build manually

git clone https://github.com/future0923/debug-tools.git
cd debug-tools
mvn clean install -T 2C -Dmaven.test.skip=true
# dist dir
# debug-tools-boot.jar remote agent jar

github

https://github.com/future0923/debug-tools/releases

gitee

https://gitee.com/future94/debug-tools/releases

The manual build encountered a packaging failure problem

The current Maven packaging requires a Java 1.8 build.

Attach

Run the debug-tools-tools.jar jar.

java -jar debug-tools-tools.jar

The output is as follows：

[INFO] debug-tools-boot version: 3.0.0
[INFO] Found existing java process, please choose one and input the serial number of the process, eg : 1. Then hit ENTER.
* [1]: 8317 /home/work/debug-tools-test-application-3.0.0.jar
  [2]: 13167 /home/work/debug-tools-boot.jar

Enter the serial number of the attached application and press Enter, it will output Success Failure and print tcpPort and httpPort information.

[INFO] Try to attach process 8317
[INFO] Attach process 8317 success. tcp port 12345, http port 22222.

Config

The parameter description can be viewed through java -jar debug-tools-boot.jar -h.

usage: debug-tools
 -hp,--http-port <arg>   target application server http port
                         default get available port.
 -tp,--tcp-port <arg>    target application server tcp port
                         default get available port.

Parameter	Description	Default
-hp,--http-port	Specify the HTTP port	increment from 22222 to find available ports
-tp,--tcp-port	Specify the TCP port	increment from 12345 to find available ports

Connect

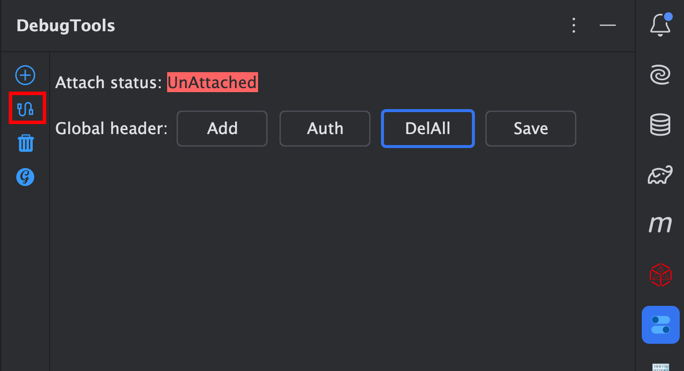

Click toolbar on the right side of Idea to wake up the DebugTools window. Click to fill in the remote address.

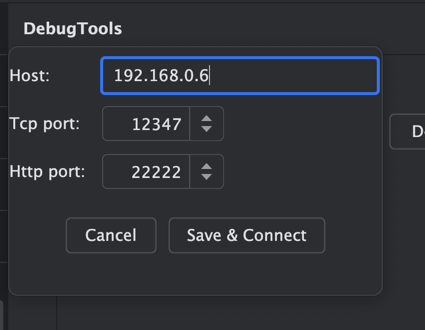

Enter host , tcpPort , httpPort, and click the Save & Connent button to connect to the remote application.

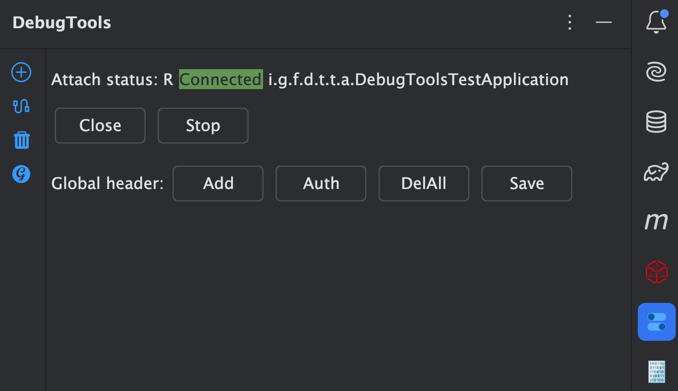

After successfully attaching the app, DebugTools displays the attachment state.

• R: The logo is attached to the remote application，L for local application.
• Connected: The application has been successfully attached and the service has been successfully connected.
• i.g.f.d.t.t.a.DebugToolsTestApplication: application name.
  • Attach when specifying the application name is the specified application name.
  • If the application name is not specified, the Spring application spring.application.name configuration item.
  • When not specified, take the Main-Class in the startup jar.
  • Fetch sun.java.command in the startup command when not found.

Use

After the connection is successful, you can wake up the debug panel to make a shortcut call to a remote method and view results, or you can use groovy console.

Advanced

If the attached app and Idea enable the remote Debug, DebugTools can not only quickly call remote methods, but also perform remote Debug breakpoint debugging.
