Request Headers

Request headers add context to a method invocation, such as authentication tokens, tenant identifiers, language, gray release flags, and request source information. DebugTools supports headers at three levels: method-level, connection-level, and project-level. When a method is invoked, DebugTools merges these headers and sends the final map to the target JVM.

Three Configuration Levels

Method-Level

Method-level headers are filled in the Headers tab on the method invocation page. They only apply to the current method invocation page.

Each row is one header key-value pair:

• Only enabled rows are included in the invocation.
• Key is the header name, such as Authorization, X-Tenant-Id, or Accept-Language.
• Value is the header value, such as Bearer token or tenant-a.
• When entering a header name, the editor suggests common HTTP headers and shows a short description for each option. Selecting an item writes it into the current cell.
• If the same method needs to reuse these headers, click in the toolbar to save them to the method parameter cache. The next time the same method is opened, they are restored automatically.

Method-level headers are suitable for temporary debugging, method-specific differences, or overriding connection-level and project-level defaults. For example, if only one method needs to switch tenants, fill X-Tenant-Id at the method level.

Editing Toolbar

The toolbar above the header table is used to maintain headers in the current tab:

Button	Description
	Add a new enabled header row.
	Clear all header rows in the current tab.
	Discard the current edits and reload the default headers. On the method invocation page, this goes back to the project-level default headers. In connection-level or project-level dialogs, it goes back to the corresponding saved values.
	Save the currently enabled headers. On the method invocation page, use it together with saving request parameters from the page toolbar. In connection-level or project-level dialogs, it saves to that level.
	Switch between table mode and text mode.

The checkbox in the first column controls whether a row is enabled. Click the header checkbox to enable or disable all rows in bulk. The remove button in each row deletes only that row.

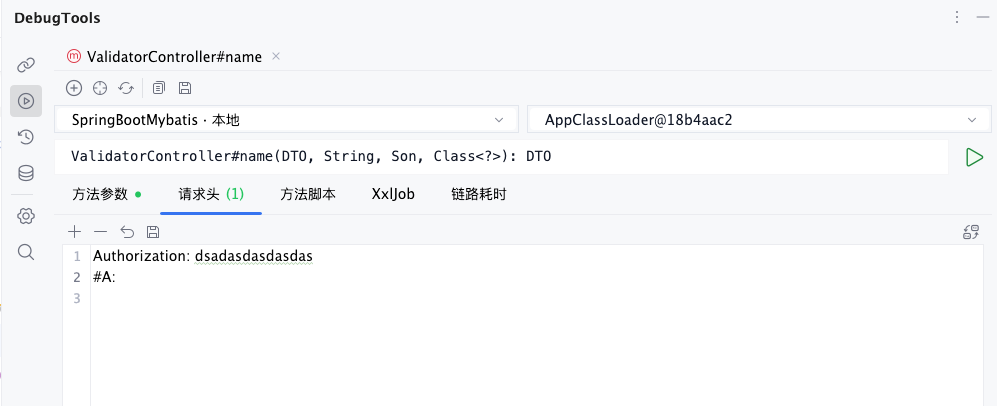

Click to switch headers to text mode, which is convenient for pasting or batch editing:

In text mode, each line uses the Key: Value format. Prefix a line with # to disable that header. For example, #Authorization: Bearer token is converted into an unchecked header row. Click again to convert the text back to the table.

Connection-Level

Connection-level headers are configured on a single connection card in the connection management page. They only apply to that connection.

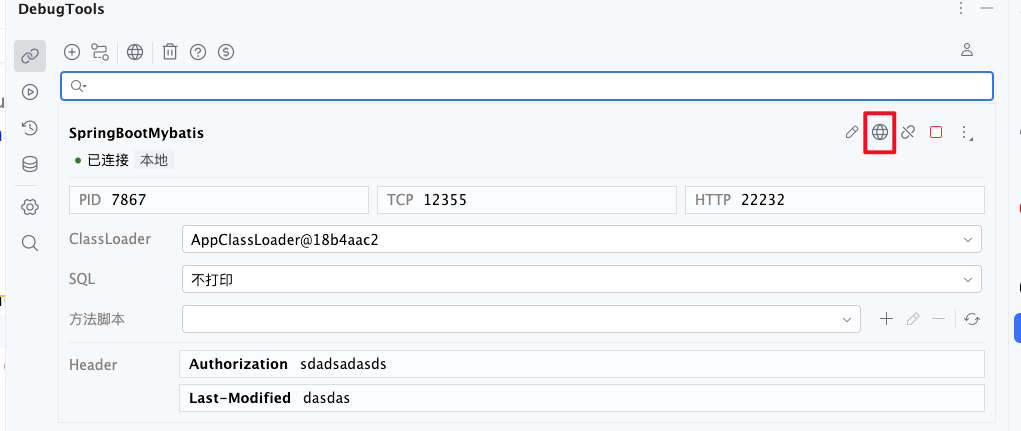

Click on a connection card to open the Header dialog. After saving, all method invocations under this connection include these headers by default. After expanding a connection card, you can also view the headers already saved for that connection in the details area.

Connection-level headers are suitable for fixed context by application, environment, or instance, for example:

• A test application always uses X-Env: test.
• A tenant-specific application always uses X-Tenant-Id: tenant-a.
• When the same IDEA project connects to multiple applications, each connection keeps its own authentication or environment headers.

TIP

Connection-level headers are saved with the connection record. After disconnecting and reconnecting, the headers kept by the connection card continue to take effect.

Project-Level

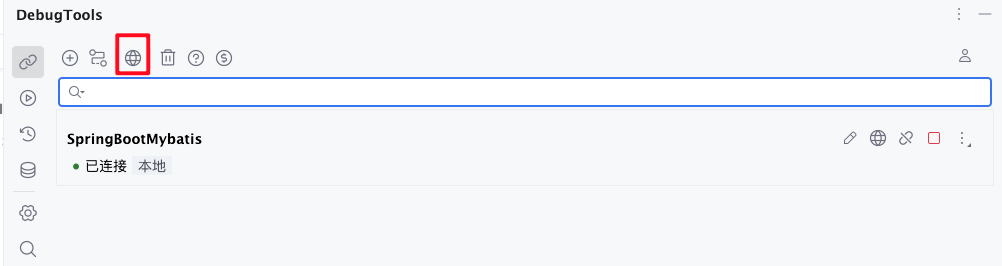

Project-level headers are configured through in the connection management toolbar. The button is shown as Global Header, and its practical scope is the default DebugTools headers for the current IDEA project.

After saving, all connections and all method invocations in the current project include these headers by default. Project-level headers are suitable for truly shared defaults, such as:

• A User-Agent used by all debug invocations.
• A base authentication header shared by the current project.
• Language, channel, or request source identifiers shared by all services.

WARNING

Project-level headers have the widest scope. If the same IDEA project connects to multiple applications with different authentication, tenant, or environment values, prefer connection-level headers instead of project-level headers.

Merge Priority

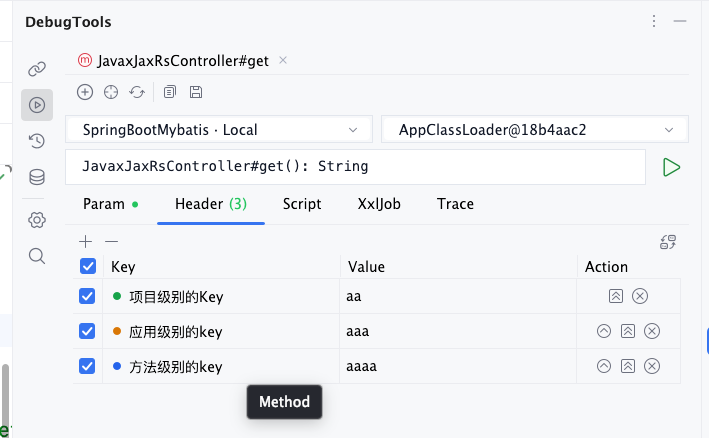

When invoking a method, DebugTools merges the three levels into the final request headers:

Method-level > connection-level > project-level

If the same header key appears in multiple levels, the highest-priority value is used:

Header Key	Project-Level	Connection-Level	Method-Level	Final Value
Authorization	Bearer project-token	Bearer connection-token	Bearer method-token	Bearer method-token
X-Tenant-Id	tenant-default	tenant-a	Not set	tenant-a
Accept-Language	en-US	Not set	Not set	en-US

In other words:

• Headers filled at the method level are not overwritten by connection-level or project-level headers.
• Headers filled at the connection level are not overwritten by project-level headers.
• Project-level headers are used only when neither method-level nor connection-level headers contain the same key.

Recommended Usage

Put each header in the smallest reusable scope:

• If it only affects the current method debugging session, use method-level.
• If multiple methods under the same connection need it, use connection-level.
• If every connection in the current IDEA project can share it, use project-level.

If you repeatedly fill the same header in method pages, consider moving it to connection-level or project-level. If a project-level header is frequently overridden by different connections, it is usually a better fit for connection-level.

Cache and Restore

Click in the method invocation toolbar to save the current method-level headers. When the same method is opened again, method-level headers are restored together with the parameter JSON, XXL-JOB parameter, trace configuration, and selected script.

When restoring a request from invocation history, DebugTools also fills in the headers from that record, making previous invocations easier to reproduce.

Connection-level headers are saved on the connection card. Project-level headers are saved through in the toolbar and stored as plugin global settings, not as part of a specific method or connection record. They are not lost after closing IDEA, reopening the project, or restarting IDEA.

Click in the toolbar to open the cache cleanup menu. Method param cache only clears the saved method invocation form content, including method-level parameters, headers, scripts, and related fields. It does not affect connection-level headers or project-level header settings.

Click Clear all to clear the core Jar cache, method parameter cache, and project-level header settings at once. Project-level headers are also cleared if you delete them in the project-level Header dialog and save, or if the IDEA DebugTools plugin configuration file is removed.

TIP

Headers are used when DebugTools builds Spring MVC and Spring WebFlux request objects. If the target method has parameters such as HttpServletRequest, ServerHttpRequest, or ServerWebExchange, those objects can also read the merged headers from the current invocation.
